What Is a Dental Office Space Plan and How Do You Read One?

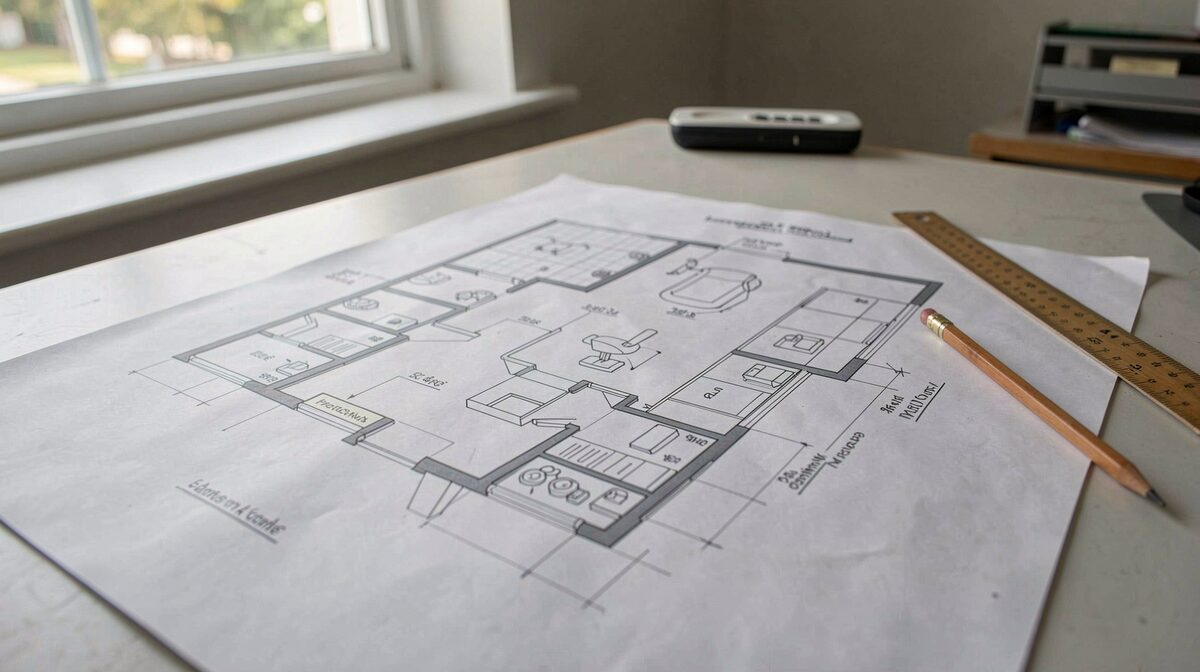

A dental office space plan is a scaled drawing that shows where every operatory, chair, and fixture goes inside a suite before construction starts. A practice owner reads it by checking three things first: room sizes against the equipment list, the position of plumbing and delivery units, and the clearance around each dental chair. If those three items check out, the rest of the document set usually follows without redraws. Springs, cables, and drums are never a homeowner job, but reading a drawing on a kitchen table is. SJ Barrett & Company published its own description as a commercial interior design firm in the Seattle/Tacoma region, recognized for dental office design and planning, which shows how a plan frames each room before construction starts.

What Is a Space Plan?

A space plan is a scaled drawing. It shows where every room, chair, and fixture goes inside a leased or purchased suite. A one-eighth-inch scale drawing of a 2,000 square foot suite fits on one page. That page is the document a practice owner signs off before any construction drawings begin.

It is not the full construction document set. The full set comes later and includes mechanical, electrical, and plumbing sheets. The space plan comes earlier, during space planning, and drives everything drawn after it. Move a wall on the space plan and every downstream drawing moves with it.

A dental space plan differs from a general office plan in one way that matters. It places dental chairs, delivery units, and plumbing in fixed positions. A general office plan can float desks around a floor. A dental chair sits where the plumbing chase sits, and the plumbing chase sits in the floor or ceiling slab. Moving an operatory after rough-in means moving pipe. Published manufacturer installation instructions list the clearances and supply points for each chair and delivery unit. Check the plan against those numbers before signing anything.

Why Does Practice Flow Come First?

Flow is the organizing principle of a dental office space plan. Patient flow runs from reception to operatory to checkout without crossing the sterile or staff zones. A plan that sends patients past the sterilization center forces compromises every working day. Staff flow is a separate line: the clean instrument path and the contaminated instrument path stay apart, which supports infection control and matches the direction instruments are meant to travel. Published practice-management literature treats production per operatory as a planning input, not an afterthought. The number of operatories, their spacing, and their access to sterilization decide how many patients a schedule can hold. Read the arrows and adjacencies on the plan before reading the finishes. A wrong adjacency costs more to fix after construction than any chair or cabinet.

How Do You Read the Rooms on the Plan?

Walk the standard room list. A typical plan shows reception and waiting, a business office, operatories, a sterilization center, a lab, a private office, a staff lounge, and mechanical or storage space. Each room carries dimensions on the drawing. Operatories are dimensioned around the chair, and typical clearances run about 8 feet by 9 to 10 feet per room in published dental design guidance. That footprint leaves room for the chair, delivery system, assistant position, and clinician movement on both sides. The sterilization center sits between operatories and the lab so instruments travel one direction only: used instruments in from the operatories, clean instruments out to storage or the lab, never back the other way. Check the door swings and corridor widths against that path. If the drawing shows instruments crossing the waiting area, the plan needs revision before construction starts.

What Do the Lines and Symbols Mean?

A dental office space plan uses standard drawing conventions. Walls drawn thicker than the others are usually bearing walls. Interior partitions show as thin lines. Read the thickness before planning any opening, because a bearing wall cannot be cut without engineering input. Plumbing symbols mark the sanitary lines serving each chair. Dental chairs are piped for water, air, and suction, so those symbols show where the wet lines run under the slab or in the ceiling. Door swings, window openings, and cabinet runs all carry their own symbols. The plan legend explains them before any written note does. Check the legend first, then walk the plan room by room with it open.

Where Do Specialty Equipment and Codes Enter?

Specialty equipment and codes show up on the plan before construction starts. X-ray rooms need shielding shown on the plan, and medical gas or vacuum drops are dimensioned where the units connect. If the shielding or the drop locations are missing, the drawing is not ready to build from. The Americans with Disabilities Act governs accessible routes, clearances at doors, and accessible restrooms. The plan must show those clearances with numbers, not assumptions. Local building codes and health department rules govern plumbing, ventilation, and radiation protection. The plan reflects them before permits are filed. A practice owner reads this section of the plan to confirm that the equipment layout, the code clearances, and the permit drawings all agree.

Who Draws It and What Happens Next?

A commercial interior design firm or an architect draws the plan. The process starts with field measurement of the suite and an interview with the dentist about workflow: how many chairs, how many staff, where patients enter and exit. A six-step sequence is common in published design guides: research, space planning, specialty equipment coordination, construction documents, interior design, and furnishings. Equipment coordination matters early because dental chairs, delivery units, and compressors need plumbing, power, and compressed air in fixed locations. Construction documents come after the plan. Those documents carry the detail contractors bid from and build from: wall types, outlet counts, duct routes. The space plan remains the reference drawing for layout decisions once construction starts. When a question arises about where a wall or a chair goes, the plan is the sheet everyone turns to first.

Where Is the Line Between the Owner and the Designer?

The owner supplies facts; the designer supplies drawings. A practice owner can list the number of chairs, staff count, storage needs, and daily patient volume. That information goes on the questionnaire the design firm uses. The designer turns it into scaled drawings. The line sits at construction decisions. Moving a chair location after plumbing is roughed in costs real money in demo and re-pipe work, so lock the plan before contractors open walls. Structural changes, shielded walls for imaging, and code-driven layouts belong to licensed professionals, not to the owner with graph paper. An owner sketching chair positions on paper is fine as a communication tool. An owner deciding a load-bearing wall moves is not. Read the plan, mark questions on it, and settle every layout disagreement before the bid goes out.
